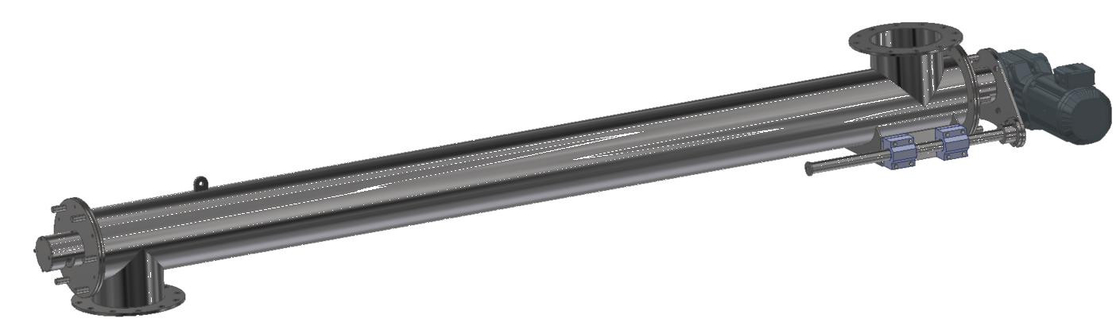

304 Stainless Steel Powder Screw Quick Detachable Powder Conveying Screw

Brand Name: Doebritz
Model Number: DB801
MOQ: 1
Price: Negotiable
Delivery Time: 10 weeks
Payment Terms: 30/70
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA JIANGSU WUXI
Applied To:
Suitable For Short-distance Conveying/metering Of Granules Or Powders
Modular Connections:
Customizable Inlets/outlets
Design:
Pressurized Bearing Design Prevents Powder Ingress
Installation And Removal:
Easy Installation And Removal
Sanitation:
Fully Stainless Steel Sanitary Construction
Dose Control:
Precise Dosing Capabilities
Whether It Can Be Tilted Or Not:
Tiltable (up To 30°)
Operation:
Heavy-duty Operation
Emission:
High Discharge Rate (up To 53 M³/h)
Safe:
ATEX Compliant
Packaging Details:
wooden box
Highlight:

Stainless Steel Powder Screw

,

Powder Screw Quick Detachable

,

Stainless Steel Conveying Screw

Product Description
Overview
The Quick Release Screw is specifically designed for short distance conveying and/or metering of any type of granular or powder composition. Inlets and outlets can be customized to suit the application. The pressurized bearing design ensures that powder does not enter the bearings.
Appliance
This quick release screw allows for easy installation and removal. The all stainless steel sanitary design is suitable for products with MIE > 3mJ in the food, plastics and chemical industries.
Highlights
Accurate dosing
Tiltable
Heavy duty operation
High outflow rate
Can be customized with inlets and outlets
pressure-bearing
Easy to install and remove
Atex compliant
Design Brief
Standard scope of supply
1. Gear motor
2. Product inlet
3. Archimedes screw
4. Spiral tube
5. Product outlet
6. Pressurized stainless steel
Options
- Gearmotors with integrated frequencyconverter
- Anti-tamper sensors
- Support brackets
- Guide rail gearmotors for full tube cleaning
Working Principle
This quick release screw is fed by gravity (below hoppers, discharge stations, etc.) and can be inclined up to 30°.
The product is conveyed from the inlet to the pipe outlet by means of an Archimedes screw. This heavy duty screw (inner shaft) is driven by a direct coupled gear motor. In dosing applications, the gear motor can be connected to a frequency converter to regulate the speed for fine dosing.
The pitch has been specifically designed to regulate flow while avoiding product compression. Discharge capacity is up to 53 cubic meters per hour.
