Created with Pixso. Auto Resonance Ultrasonic Vibrating Sieve Machine With Continuous Frequency Sweep
Auto Resonance Ultrasonic Vibrating Sieve Machine With Continuous Frequency Sweep
  • Name

Auto Resonance Ultrasonic Vibrating Sieve Machine With Continuous Frequency Sweep

Brand Name: Farley Greene
MOQ: 1
Price: negotiable
Delivery Time: 14
Payment Terms: 30/70
Detail Information
Product Description
Detail Information
Place of Origin:
UK
Prevents Blockage:
Prevents Mesh Blockage And Blinding
Adaptability:
Fits Most Sievmaster Sieving Machines
Frequency:
Uses Frequency Variation Instead Of Single - Wave Resonance
Overheating:
Solves Heating And 'hot Spots' Issues
Options:
Available With Various Options
Throughput:
Improves And Ensures Consistent Throughput
Hygienic Design:
Hygienic Design With Most Components Outside Product Flow
Frequency Sweeping:
Minimizes Mesh Wire Work Hardening With Frequency Sweeping
Automation:
Self - Tuning Ultrasonics, No Operator Input For Mesh Changes
Control System:
Connectable To External Control System Via RS232 Port
Packaging Details:
wooden box
Highlight:

Auto Resonance Ultrasonic Vibrating Sieve

,

Continuous Ultrasonic Vibrating Sieve

,

Ultrasonic Vibrating Sieve Machine

Product Description

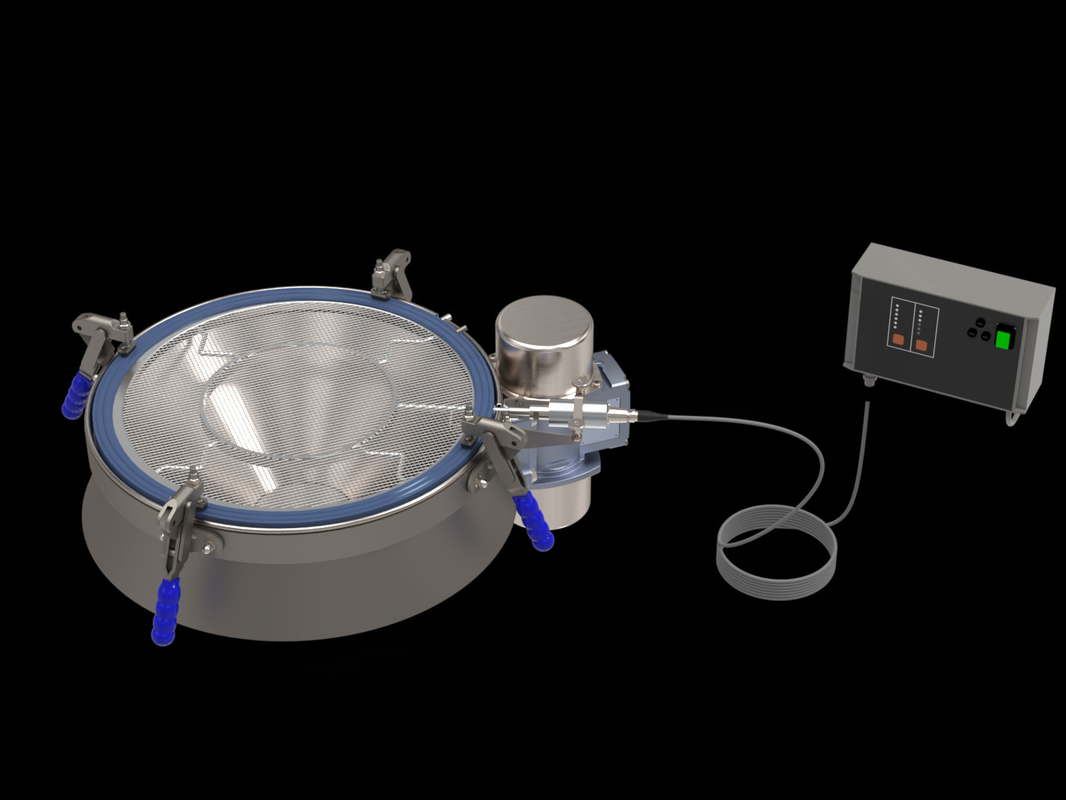

Ultrasonic System
A set of supplementary equipment used to prevent mesh blockage and blinding.
The ultrasonic system is designed to fit within most Sievmaster sieving machines. It uses a generator box connected to an externally mounted converter which applies ultrasonic vibrations to a wave guide and transmits them to a mesh screen.
It applies a continuously varying wave, known as ‘frequency variation’, rather than ‘single wave’ resonance frequency. This solves common problems such as heating and ‘hot spots’ that run the risk of causing premature mesh failure.
The Sievmaster Ultrasonic System is available with a variety of different options depending on each user’s requirements. Please get in contact with your local Farleygreene distributor or with us directly to find out more about specifications for the ultrasonic system.

Features and Benefitis
  • Improves and ensures consistent throughput rates and helps to reduce maintenance by keeping the mesh clear.
  • A hygienic design, all ultrasonic components (other than the mesh ring) are outside the product flow.
  • The system uses frequency sweeping to minimise work hardening of mesh wires and better dissipate the build up of heat in the mesh, maximising the life span of the mesh.
  • Self tuning ultrasonics that find the resonance frequency of the system they are attached to, meaning no operator input is needed when switching between mesh rings gaskets etc.

  • Can be connected to and controlled/monitored by a external control system via the integrated RS232 port and generator.
