Powder Rotary Valve
Created with Pixso. Stainless Steel 304 Blow Through Quick Release Rotary Valve With Dynamic Sealing

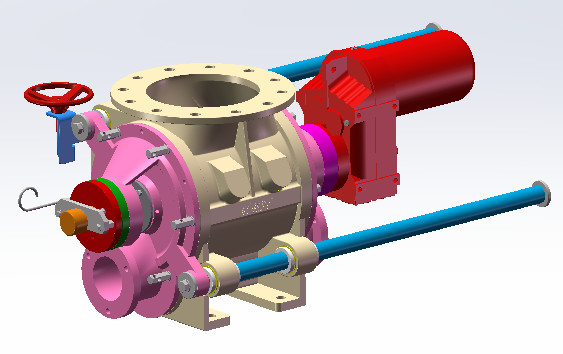

Stainless Steel 304 Blow Through Quick Release Rotary Valve With Dynamic Sealing
  • Name

Stainless Steel 304 Blow Through Quick Release Rotary Valve With Dynamic Sealing

Brand Name: Doebritz
MOQ: 1
Price: negotiable
Delivery Time: 10 weeks
Payment Terms: 30/70
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA JIANGSU WUXI
PRESSURE:
Up To 2 Bar
PRESSURE SHOCK RESISTANT:
Up To 10 Bar
PRODUCT TEMP °C:
Up To +150° (optional Up To +600° Depending On Material Of Construction)
AMBIENT TEMP °C:
-20° Up To +40°
STANDARD / EASILY DETACHABLE:
Yes
RID CONTROL:
Yes
ROTOR:
Adjustable Blades / Fixed Vanes
ADJUSTABLE BLADES:
Steel / Steel Hardened / Stainless Steel / Polyurethane
SEAL:
Gland / Air Purge By Means Of: Packing Cord / Lip Seal
DRIVE:
Chain / Direct Drive: Helical Gear Unit - Parallel Shaft Helical Gear Unit
ATEX 2014/34/3U:
1D/2GD Equipment / Protective System St.2 (10 Bar Pmax)
Material:
Stainless Steel 316
Packaging Details:
wooden box
Highlight:

Blow Through Quick Release Rotary Valve

,

Stainless Steel Quick Release Rotary Valve

Product Description

Stainless Steel 304 Quick-Release Powder Sanitary Rotary Valve

1. Core Product Features

  1. Material & Craftsmanship
    • Valve body: Stainless steel 304, key components optional 316L for enhanced corrosion resistance. Surface electrolytically polished to Ra≤0.8μm, compliant with FDA/GMP standards.
    • Seal materials: EPDM (-10°C~150°C), silicone (food-grade), or PTFE (chemical resistance), supporting bidirectional sealing.
  2. Quick-Release Design
    • Clamp-type quick-connect (DIN11851/ISO2852 standards), tool-free disassembly, reducing maintenance time by 70%.
    • Full-bore design minimizes material residue, flow loss <2%.
  3. Functional Parameters
    • Applicable media: Dry powders, granules (≤5mm), viscous pastes (viscosity ≤50,000cP).
    • Temperature range: -10°C~150°C; pressure rating: 0.6–2.5MPa.
    • Standard sizes: DN200–DN300; manual torque ≤50N·m.

2. Typical Applications

Industry Application Scenarios Use Casesa
Pharmaceuticals Blender discharge, IBC bin sealing API packaging, tablet granule transfer
Food Milk powder filling, spice dosing Dairy lines, flavoring systems
Chemicals Nanoparticle pneumatic transport Catalyst feeding, carbon powder handling
New Energy Battery cathode material handling Graphene powder metering
