Vertical Powder Mixer
Created with Pixso. High Precision Vertical Powder Mixer 304 / 316L Stainless Steel Ribbon Mixer Machine

High Precision Vertical Powder Mixer 304 / 316L Stainless Steel Ribbon Mixer Machine

Brand Name: Doebritz
MOQ: 1
Price: negotiable
Delivery Time: 14 weeks
Payment Terms: 30/70
Detail Information
Place of Origin:
CHINA JIANGSU WUXI
Three - Dimensional Flow Mode:
Ensuring Thorough Mixing Without Dead Corners.
Conical Vertical Discharge:
Enables 100% Complete Unloading.
High - Precision Mixing:
Mixing Uniformity Reaches Over 99.5%, And The Residual Rate Is Less Than 0.5%.
Wide Material Adaptability:
It Can Handle Material Combinations With A Density Difference Of Up To 1:10000
Modular Temperature Control System:
The Jacket Supports Temperature Control From - 20°C To 250°C
Vacuum/Positive Pressure Compatibility:
The Optional Pressure Range Is From 0.01 MPa To 0.6 MPa
Short - Time And High - Efficiency Mixing:
The Single - Batch Mixing Time Is 3 - 15 Minute
Hygienic - Grade Materials:
It Has A 304/316L Stainless - Steel Structure
Disconnected Shearing Design:
A Vortex Effect Is Formed Between The Screw Belts, Enhancing The Dispersion Of Viscous/cohesive Materials.
Intelligent Drive System:
It Is Equipped With A Cycloidal Pin Wheel Reducer And Frequency - Conversion Control, With Torque Compensation To Protect The Transmission Components.
Packaging Details:
wooden box
Highlight:

High Precision Vertical Powder Mixer

,

Vertical Powder Mixer Stainless Steel

,

Vertical Ribbon Mixer Machine

Product Description

REVIEW

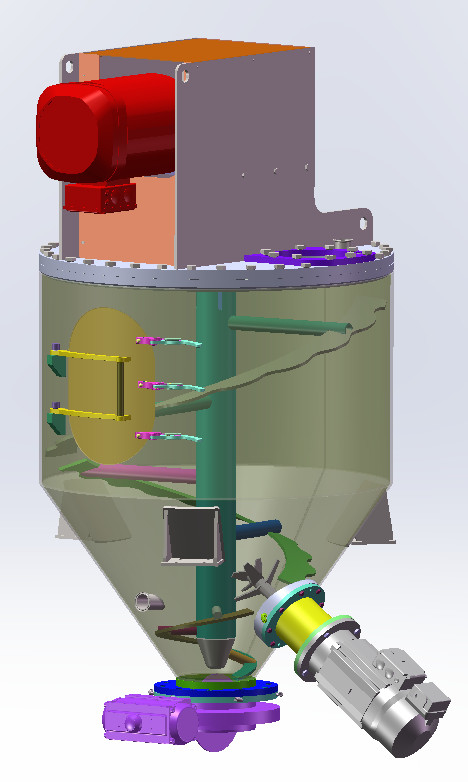

The spiral mixing blade initiates a three-dimen-skonal fiow of the mlxlng goods;creetlng a hellealupward movement on the periphery and down-ward flow in the centre.This conical mixer guar-antees very good mlxlng results and completedischarge.Vertical ribbon mixer can be widelyused for food and pharmacy industry with bestmlxlng homogenlety and short mlxlng tme.

It is a mixing equipment with highprecision,can be widely used formixing goods with large differencein density,feeding ratio,particlesize,and has good mixing effecteven for feeding ratio large as:1:1000~10000,Heating/coolingjacket,positive pressure/vacuumApplication etc available onrequest.
