Powder Diverter Valve

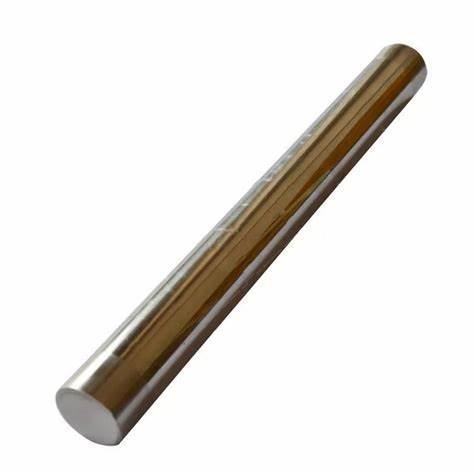

25mm 1 Inch Diameter Magnetic Tube / Bar For Magnetic Screen Separators

Brand Name:	Doebritz
MOQ:	1
Price:	negotiable
Delivery Time:	14 weeks
Payment Terms:	30/70

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA JIANGSU WUXI

Standard Diameter:

25mm (1 Inch)

Custom Length:

Produced To Requirement, Maximum Length Up To 2500mm

Shape Variability:

Round, Square, Or Custom Shapes

Material Type:

Seamless Stainless Steel Tubes (304/316 Grade)

Surface Treatment:

Precision Polishing + Full-welding Process

Industry Compliance:

Food/pharmaceutical-grade Standards

Temperature Range:

Standard Operating Temperature ≤80°C, Special Requirements Up To 350°C

End Configurations:

Studded Ends, Threaded Holes, Dual-bolt Configurations

Magnetic Material:

Ferrite Or Rare-earth Magnets (maximum 12,000 Gauss (Gs))

Ore Application:

Key Component For Magnetic Screen Separators

Packaging Details:

wooden box

Highlight:

25mm Magnetic Tube

1 Inch Magnetic Tube

Separators Magnetic Tube

Product Description

Features:

.Standard bars is 25mm(1 inch)in diameter and any length per customer's request,the Max length up to 2500mm, square or other magnetic tubes with different shapes and dimensions are also available.
.The magnetic bar usually made of seamless 304 stainless steel tubes or 316 stainless steel tubes can be fine polished and full welded to meet food grade or pharmacy application.
.Usual max working temperature is 80℃,we can offer up to 350℃to meet your special applications.
.Various ends-nail head,thread hole,double screw bolt and other kind ends are also available.
.By using ferrite magnets or different grade rare earth magnets,different magnetic strengh are available to meet every custom's requirment, the highest mangetic strength of Diameter 25mm(1 inch) tube can achive 12,000GS(1.2T) .

Applications:
Magnetic bars are the main part of different magnetic grate separators. They can effectively remove ferrous chipsand metalparticles from loosely packed,free flowing materials. separators.
