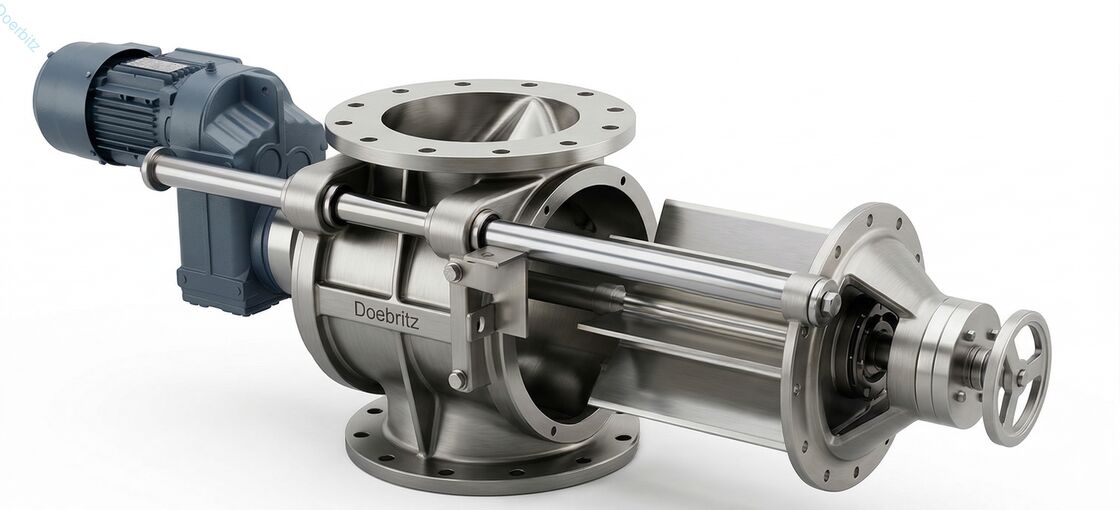

The Doebritz Anti-Bridging Rotary Valve is an advanced material handling component specifically engineered to prevent powder caking and blockages. It acts as a highly reliable airlock to achieve stable feeding and precise pressure isolation within complex pneumatic conveying systems.
Built to handle difficult, cohesive materials with superior reliability, this rotary valve thrives across multiple demanding sectors. Typical application scenarios include:
To guarantee stable and reliable operations under complex conditions, our rotary valves are backed by rigorous, verified technical data:
| Specification | Details |
|---|---|
| Material | Stainless Steel (SUS304 / SUS316L) |
| Working Pressure | -0.5 to 2 bar |
| Working Temperature | -10 to 150°C |
| Max Capacity | Up to 634 L/min |
| Power Supply | Customized based on specific load requirements |
| Structure Design | Quick Dismounting (Anti-Bridging) |
Integrating this Doebritz rotary valve provides immediate, tangible value to your material handling line. It actively reduces material leakage, dramatically improves conveying stability by eliminating jams, and significantly lowers maintenance costs through its accessible quick-opening design.
Yes, the premium stainless steel construction and accessible cleaning design make it highly suitable for hygienic food powder processing lines.
Absolutely. It is expressly engineered with tight tolerances to act as a robust airlock for both vacuum and positive pressure pneumatic conveying.
Maintenance is highly efficient. The quick dismounting mechanism allows operators to open the unit in seconds to inspect, wash, and clear any potential cohesive powders effortlessly.
