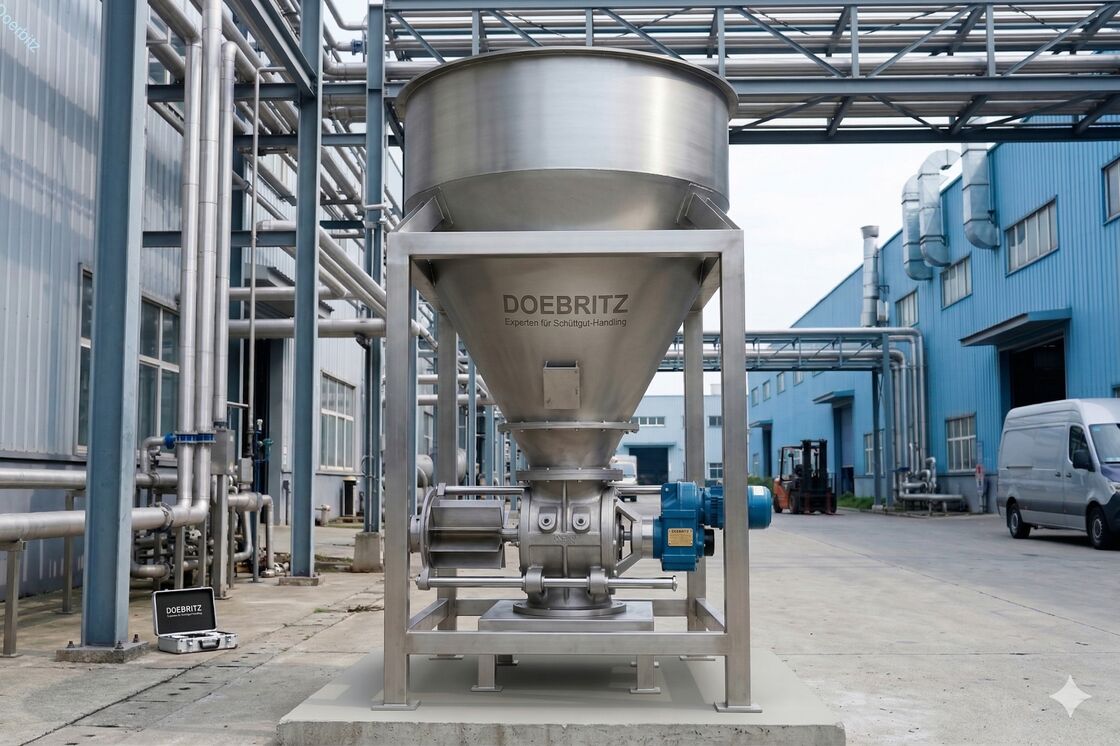

Quick Dismounting Stable Conveying Rotary Valve for Powder Handling in Stainless Steel

Detail Information

Product Description

Detail Information

Strong Sealing:

Ensures No Leakage.

Motorpower:

0.75 KW

Sealing Performance:

Ensures No Gas Leakage.

Modular Components:

Easy Maintenance And Replacement.

Temperature:

Safe Operating Range

Drive:

Direct Drive Worm Gear Unit

Capacity:

Up To 10 M³/h

Adjustable Flow:

Adapts To Different Material Needs

Sealed Operation:

Prevents Leakage And Contamination

Structure:

Explosion-proof Material

High Safety:

Ensures Operational Safety.

Compact Design:

Saves Space.

Coating:

Safety:

Enhances System Pressure Safety

Material:

Stainless Steel

Product Description

Quick Dismounting Stable Conveying Rotary Valve For Powder Conveying Stainless Steel

Product Overview

The Doebritz Quick Dismounting Rotary Valve is an advanced precision material handling component engineered specifically for plastic pellet extruders and granule processing lines. It serves as a highly reliable airlock to achieve stable feeding and robust pressure isolation within complex pneumatic conveying systems.

Application Scenarios

Built for continuous discharging with high efficiency, this specialized rotary valve excels across multiple demanding sectors including:

Chemical powder handling
Plastic pellet extrusion lines
Granule transport systems
Integrated dust collection systems

Core Advantages

Quick Dismounting: Enables rapid housing access without unbolting main pipelines, drastically reducing cleaning downtime during material or color changeovers.
Stable Conveying: Precision-machined rotor pockets prevent pellet shearing, jamming, or bridging, ensuring uniform and consistent feed rates.
Stainless Steel Construction: High-grade stainless steel eliminates contamination risks, resists structural wear, and delivers long-term durability.

Performance Data

Pressure Resistance: Maintains perfect sealing integrity in systems operating from -0.5 to 2 bar

Thermal Adaptability: Operates flawlessly without seizing across -10 to 150°C temperature range

High Processing Capacity: Delivers exceptional throughput with maximum capacity up to 634 L/min

Technical Specifications

Specification	Details
Material	Stainless Steel (SUS304 / SUS316L)
Working Pressure	-0.5 to 2 bar
Working Temperature	-10 to 150°C
Max Capacity	Up to 634 L/min
Power Supply	Customized based on specific extruder load requirements
Structure Design	Quick Dismounting

Operational Benefits

Integrating this Doebritz rotary valve provides immediate value to your extrusion line by:

Reducing material leakage
Dramatically improving conveying stability
Significantly lowering maintenance costs and downtime through accessible quick-opening design

Frequently Asked Questions

Is this equipment suitable for food-grade or cleanroom processing?

Yes, the premium stainless steel construction and highly accessible quick-dismounting design make it perfectly suited for clean, contamination-sensitive processing environments.

Does it support pneumatic conveying systems?

Absolutely. It is expressly engineered with tight tolerances to act as a robust airlock for both vacuum and positive pressure pneumatic conveying lines.

How is the rotary valve maintained?

Maintenance is highly efficient. The quick dismounting mechanism allows operators to open the unit in seconds to inspect, clear residual plastic pellets, and wash the equipment effortlessly.
