Stable Conveying Easy Cleaning Stainless Steel Rotary Valve for Powder Conveying

Detail Information

Product Description

Detail Information

Capacityrange:

0.1 To 50 M³/h

Lightweight Structure:

Quick Installation And Disassembly.

Versatility:

Suitable For Various Materials.

Monitoring:

Temperature Monitoring Device

Easy Maintenance:

Simple To Clean And Maintain.

Strong Sealing:

Ensures No Leakage.

Outletpressure:

Atmospheric Pressure

Grounding:

Secure Grounding Design

Outletconnection:

Flanged / Threaded

Maintenance:

Easy To Inspect And Maintain.

Drivetype:

Electric Motor / Pneumatic

Speed:

10-60 RPM

Surfacetreatment:

Powder Coating / Polished

Modular Components:

Easy Maintenance And Replacement.

Structure:

Explosion-proof Material

Product Description

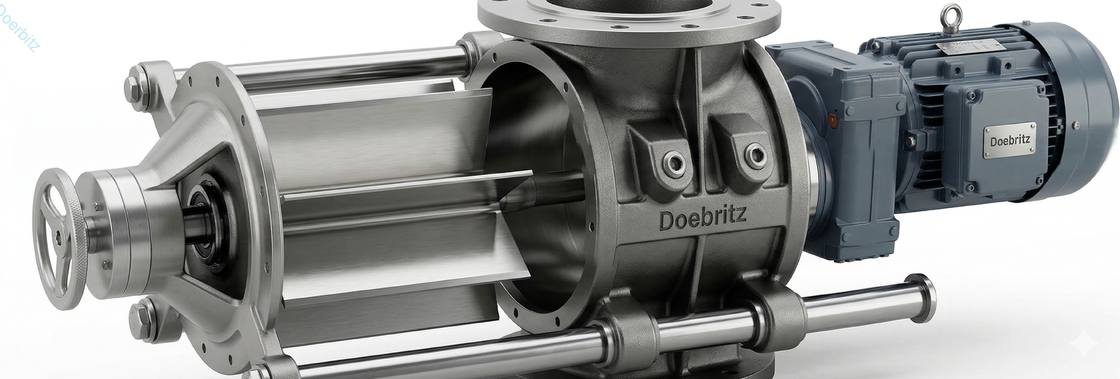

Stable Conveying Easy Cleaning Rotary Valve For Powder Conveying Stainless Steel

Product Overview

The Doebritz Rotary Valve is a highly specialized material handling component designed to provide uniform discharging for mixed granules and powders. It acts as a robust airlock to achieve stable feeding and precise gas isolation within complex pneumatic conveying systems.

Application Scenarios

Built for versatility, this rotary valve thrives in industries requiring exact dosing to prevent material segregation. Typical application scenarios include food powder processing, chemical powder handling, grain transport, and integrated dust collection systems.

Core Advantages

Stable Conveying: The precision-machined rotor pockets ensure highly accurate, uniform material discharge. This prevents the segregation of mixed granules and powders, maintaining a consistent feed rate under varying system loads.
Easy Cleaning: It features an intuitive access structure that allows operators to rapidly open the housing. This ensures thorough washdowns and prevents cross-contamination between different powder batches.
Stainless Steel Construction: Manufactured from premium stainless steel (SUS304 / SUS316L), it offers exceptional durability, corrosion resistance, and compliance with stringent hygienic standards.

Performance Data

To guarantee stable and reliable operations under complex conditions, our equipment is backed by verified technical data:

Pressure Resistance: Safely maintains perfect sealing integrity in systems operating from -0.5 to 2 bar.
Thermal Adaptability: Operates flawlessly across a wide working temperature range of -10 to 150 °C.
High Processing Capacity: Delivers exceptional quantitative throughput with a maximum capacity of 634 L/min.

Technical Specifications

Specification	Details
Material	Stainless Steel (SUS304 / SUS316L)
Working Pressure	-0.5 to 2 bar
Working Temperature	-10 to 150°C
Max Capacity	Up to 634 L/min
Power Supply	Customized based on specific load requirements
Structure Design	Easy Cleaning

Key Benefits

Integrating the Doebritz uniform discharging rotary valve provides immediate, tangible value to your production line. It actively reduces material leakage, dramatically improves conveying stability, and significantly lowers maintenance costs through its accessible easy-cleaning design.

Frequently Asked Questions

Is this equipment suitable for food-grade processing?

Yes, its premium stainless steel construction makes it perfectly suited for hygienic food powder processing environments.

Does it support pneumatic conveying systems?

Absolutely. It is expressly designed to act as a robust airlock and stable feeder for both vacuum and positive pressure conveying.

How is the rotary valve maintained?

Maintenance is highly efficient. The "Easy Cleaning" structure allows operators to quickly open and inspect the internal rotor without disassembling the surrounding pipeline.
