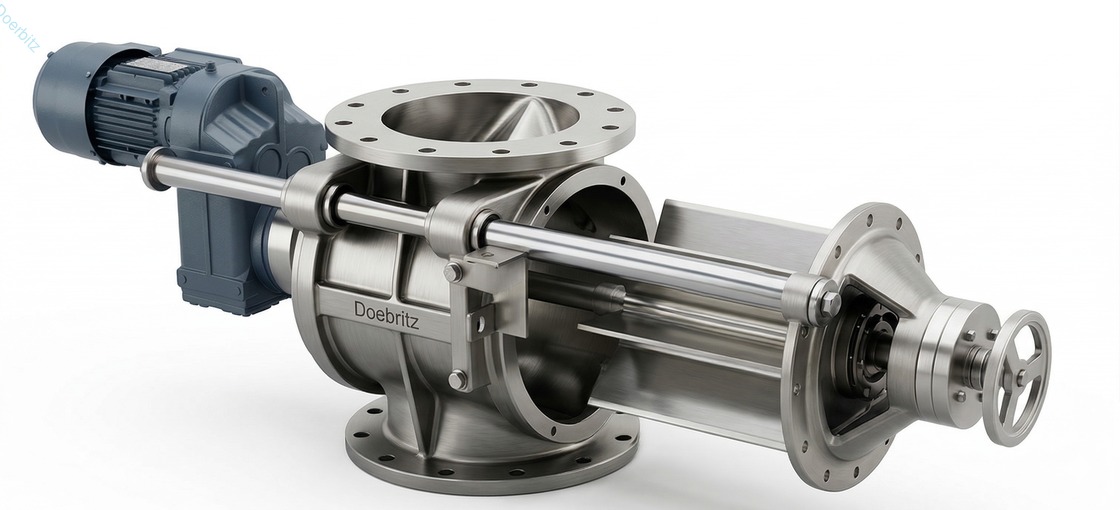

Double Sealing Easy Cleaning Stainless Steel Rotary Valve for Powder Conveying

The Doebritz High-Pressure Quick Wash Rotary Valve is an advanced material handling and pressure-locking component. It functions as an ultra-reliable rotary airlock and volumetric feeder, explicitly engineered to achieve consistent feeding and absolute gas sealing beneath roots blower positive pressure pneumatic conveying systems.

Positive pressure conveying networks subject equipment to high counter-pressures; any micro-gaps or seal deterioration will cause process air to blow upward, causing severe material flushing, line plugging, and pipe erosion. Built to overcome these rigorous pressure challenges, this specialized rotary valve is widely deployed under feed hoppers, storage silos, dumping stations, and material receivers in the food processing, pharmaceutical, chemical powder, and plastics industries.

• Double Sealing (Maximized System Pressure): Roots blowers deliver high-velocity air streams that constantly push against the bottom discharge of the valve. Our advanced Double Sealing mechanism and precision-machined internal clearances create an impervious air barrier. This eliminates blow-back gas leakage, ensures that raw material falls smoothly into the line, and guarantees perfectly Stable Conveying.
• Easy Cleaning (Quick Wash Design): Handling multi-ingredient powder recipes means the valve must undergo frequent washdowns to prevent cross-contamination. The innovative fast-access quick-wash structure allows a single technician to open the end cover and remove the internal rotor inside minutes, allowing total internal washability and inspection without removing the main body casing from the pipeline.
• Stainless Steel Execution: Manufactured entirely from heavy-duty premium Stainless Steel (SUS304 / SUS316L), the structural surfaces completely resist abrasive particle friction and chemical corrosion, drastically extending the service life of the valve.

To guarantee stable operations under high continuous backpressure and industrial pneumatic throughput, our equipment is backed by verified engineering parameters:

• Pressure Resistance: Precision-machined to safely handle perfect sealing performance in high-pressure airlock streams running from -0.5 to 2 bar.
• Thermal Adaptability: Functions securely without mechanical binding across a wide working temperature range of -10 to 150 °C.
• Processing Capacity: Engineered for continuous processing efficiency, providing exact volumetric output with a maximum capacity of up to 634 L/min.

Integrating this Doebritz high-pressure rotary valve provides immediate, tangible value to your pneumatic conveying line. It actively eliminates upward air blow-back and material flushing, dramatically improves conveying and batching stability, and significantly lowers cleaning downtime and labor costs via its highly accessible tool-less quick-wash design.
