Stainless Steel Easy Cleaning Stable Conveying Rotary Valve for Powder Handling

Detail Information

Product Description

Detail Information

Drivetype:

Gear Motor

Adjustable Flow:

Adapts To Different Material Needs

Inletpressure:

0.5 MPa

Gravity Discharging:

Effectively Discharges Materials.

Mountingtype:

Flanged

Rotationspeed:

10-60 RPM

Compact Design:

Saves Space.

Inspection:

Regular Maintenance Checks

Blowing Design:

Prevents Material Blockage.

Powersupply:

220V / 380V / Custom

Applicable Gases:

Suitable For Various Gas Media.

Maintenance:

Easy To Inspect And Maintain.

Strong Sealing:

Ensures No Leakage.

Adjustable Blades:

N.A.

Voltage:

220V/380V

Highlight:

stainless steel powder rotary valve

easy cleaning rotary valve

stable conveying powder valve

Product Description

Easy Cleaning Stable Conveying Rotary Valve For Powder Conveying Stainless Steel

Product Overview

The Doebritz Quick-Wash Buffer Hopper Rotary Valve is an advanced material handling and precision-metering component. It functions as an ultra-reliable rotary airlock and metered feeder, explicitly engineered to achieve consistent material flow and reliable gas isolation directly above packing and bag-filling machines in powder processing lines.

Application Scenarios

Uncontrolled gravity rushes or material flushing from an upper buffer hopper into a packing scale can instantly distort weight readings, leading to severe bag filling errors and product waste. Built to provide reliable volumetric control and eliminate flow interruptions, this specialized easy-cleaning rotary valve is widely deployed beneath buffer bins, surge hoppers, and intermediate storage silos feeding automated packaging scales in the food, pharmaceutical, and fine chemical industries.

Core Advantages

Stable Conveying (Guarantees Packing Accuracy): Packaging lines require highly uniform feeding to maintain bagging speed and weight tolerances. Our precision-machined rotor pockets deliver exact volumetric displacement per revolution, ensuring perfectly uniform and stable conveying into the dosing screw of the packing machine.

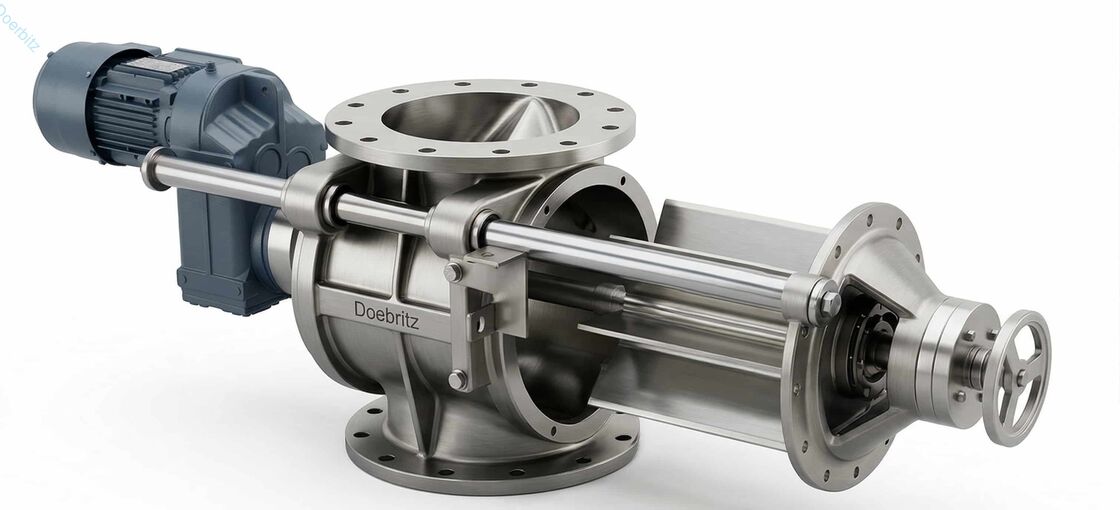

Easy Cleaning (Fast Batch Changeovers): The innovative fast-opening structure allows a single operator to quickly release the end plate fastenings and slide out the rotor within minutes, facilitating immediate thorough water or air washdowns to eliminate all cross-contamination risks.
Stainless Steel Execution: Manufactured entirely from heavy-duty premium stainless steel (SUS304 / SUS316L), the structural surfaces resist high frictional wear from moving fine powders while ensuring strict compliance with global food-grade and hygienic processing regulations.

Performance Data

To guarantee stable operations under continuous storage hopper load and typical pneumatic pressure differentials, our equipment is backed by verified engineering parameters:

Pressure Resistance: Precision-machined to safely maintain perfect sealing performance in pressure boundaries running from -0.5 to 2 bar, preventing vacuum or positive air from blowing back into the packaging hopper.
Thermal Adaptability: Functions securely without pocket jamming across a wide working temperature range of -10 to 150°C, handling warm dried or ambient powders seamlessly.
Processing Capacity: Engineered for continuous high-speed packaging efficiency, providing exact volumetric output with a maximum capacity of up to 634 L/min.

Technical Specifications

Specification	Details
Material	Stainless Steel (SUS304 / SUS316L)
Working Pressure	-0.5 to 2 bar
Working Temperature	-10 to 150°C
Max Capacity	Up to 634 L/min
System Compatibility	Automated Packing Scales & Buffer Hopper Outlets
Structure Design	Easy Cleaning (Tool-less Quick-Opening Fast Wash Type)

Key Benefits

Integrating this Doebritz high-efficiency rotary valve provides immediate, tangible value to your automated packaging line. It actively eliminates powder flushing and bag weighing errors, dramatically improves batching and conveying stability for fine powders, and significantly lowers formula changeover downtime via its highly accessible tool-less easy-cleaning design.

Frequently Asked Questions

Why do I need a rotary valve between the buffer hopper and the packing machine?

Fine powders stored in a buffer hopper can easily fluidize or flush down under their own weight, flooding the packing screw and causing severe weight overshoots. A rotary valve acts as a mechanical airlock gate that isolates the head load of the hopper and feeds the packing line at a steady, controlled volumetric rate, protecting your packing accuracy.

How does the quick wash design help prevent cross-contamination between different batches?

Traditional valves require full tools and lengthy pipe removal to clear internal residue. Our quick-clean mechanism features tool-less knobs or clamps. Technicians can completely open the valve body, extract the rotor assembly, and fully wash or wipe out any old leftover powders within minutes, making batch changeovers swift and safe.

Can this valve handle pressure variations coming from downstream pneumatic conveying lines?

Yes, absolutely. The precise internal clearances between our stainless steel rotor and the main housing function as an exceptionally tight airlock across -0.5 to 2 bar, preventing warm or damp conveying gases from blowing back up into your packaging buffer hopper.
