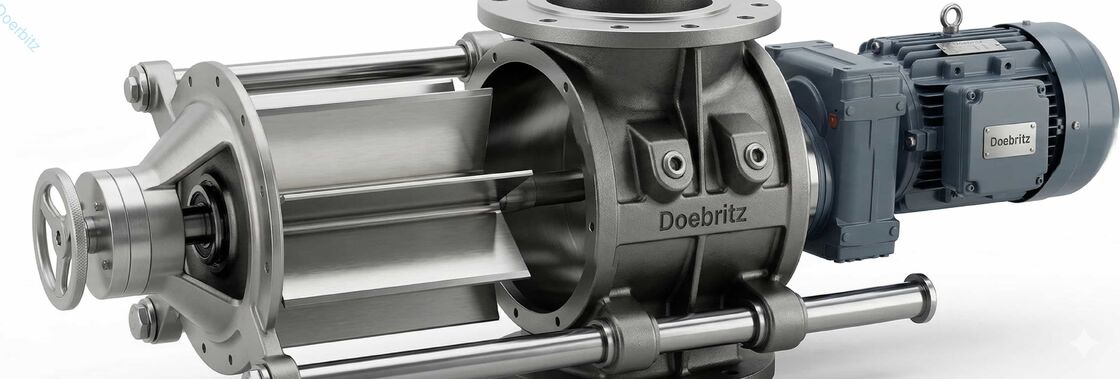

The Doebritz Pipeline Network Multi-Way Rotary Valve is an advanced material handling and pressure-locking component designed as an ultra-reliable rotary airlock and volumetric feeder. It is specifically engineered to achieve consistent feeding and absolute gas sealing within demanding lean-phase (dilute-phase) pneumatic conveying systems.
This specialized easy-disassembly rotary valve is widely deployed at pipe switching points, silo matrix feeding nets, and multiple pipeline distribution stations in industries including food processing, pharmaceuticals, chemical powders, and plastics. It is built to handle precision pressure-locking boundaries in lean-phase pneumatic conveying networks where high-velocity air streams suspend and move bulk materials.
Our equipment is backed by verified engineering parameters to guarantee stable operations under high continuous lean-phase velocities and industrial throughput:
| Specification | Details |
|---|---|
| Material | Stainless Steel (SUS304 / SUS316L) |
| Working Pressure | -0.5 to 2 bar |
| Working Temperature | -10 to 150°C |
| Max Capacity | Up to 634 L/min |
| System Compatibility | Lean-Phase / Dilute-Phase Pneumatic Conveying Networks |
| Structure Design | Easy Cleaning (Tool-less Quick Dismounting Type) |
Integrating this Doebritz high-pressure rotary valve provides immediate, tangible value to your pneumatic processing plant. It actively eliminates pipeline pressure drop and material blow-back, dramatically improves conveying and distribution stability for multi-way systems, and significantly lowers line changeover downtime and labor via its highly accessible tool-less easy-cleaning design.
In lean-phase pneumatic conveying networks, material relies entirely on continuous air velocity to stay suspended. If the airlock valve leaks air upward, it bleeds off the pressure and air volume inside the main pipe, causing the powder to drop out of the air stream and block the entire line. Our double sealing technology traps the pressure below the rotor pockets perfectly to sustain maximum conveying metrics.
Not at all. When the quick dismounting cover plates are closed and secured using our fast-clamping fasteners, the valve achieves a rugged, gas-tight industrial seal that safely maintains precise pressure containment between -0.5 and 2 bar.
It is exceptionally efficient and safe. The tool-less quick opening mechanism allows operators to release the fast-locks without tools, slide out the rotor assembly, wash or wipe the interior clean of old residues, and resume multi-line pipeline routing in just a few minutes.
