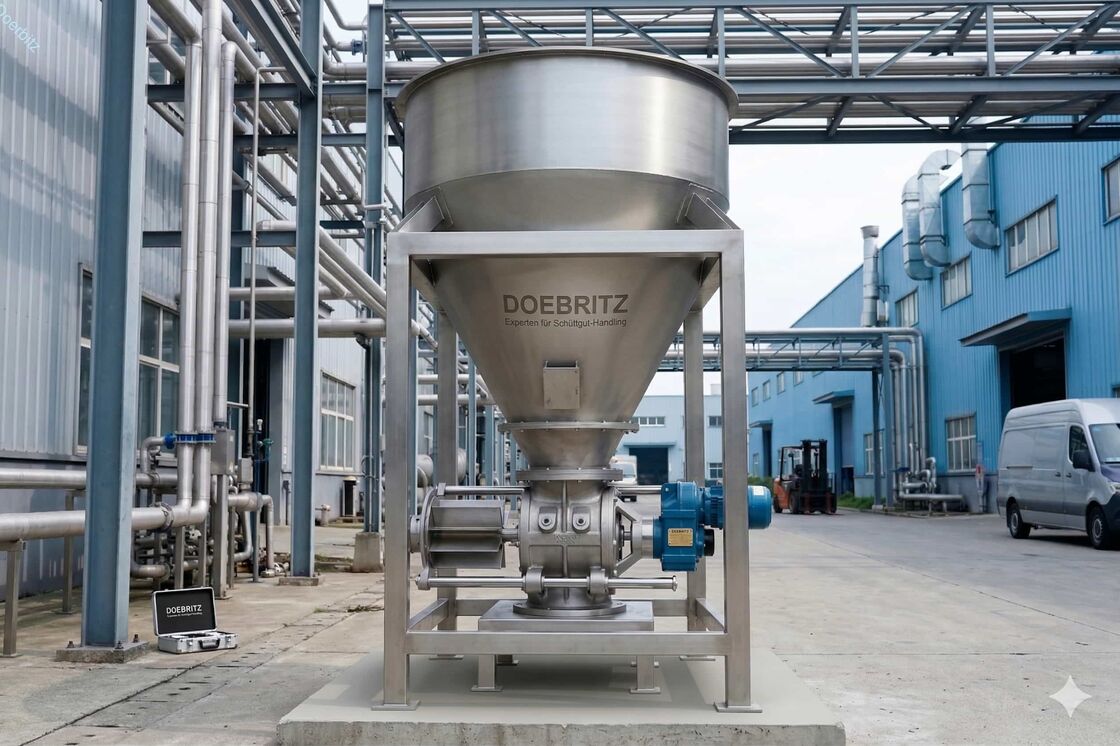

The Doebritz Anti-Jamming Quick Dismounting Rotary Valve is an advanced material handling and precision-metering component. It functions as an ultra-reliable rotary airlock and anti-blocking volumetric feeder, engineered to achieve consistent material flow and reliable gas isolation at the interconnection ports of tube chain conveyors in powder processing systems.
The transitional junction feeding into a tube chain conveyor is a notorious bottleneck where uncontrolled powder surges or granule pinching can cause mechanical jamming and line plugging. This specialized quick-opening rotary valve is widely deployed beneath storage silos, buffer hoppers, and dosing bins feeding continuous tubular drag chain conveyors across chemical, food processing, plastics, and pharmaceutical industries.
Our equipment is backed by verified engineering parameters to guarantee stable operations under high continuous bulk material loads:
| Specification | Details |
|---|---|
| Material | Stainless Steel (SUS304 / SUS316L) |
| Working Pressure | -0.5 to 2 bar |
| Working Temperature | -10 to 150°C |
| Max Capacity | Up to 634 L/min |
| System Compatibility | Tubular Drag Chain Conveyor Feed Inlets & Outlets |
| Structure Design | Quick Dismounting (Tool-less Fast Cleaning Type) |
Integrating this Doebritz high-efficiency rotary valve provides immediate, tangible value to your continuous processing line. It actively eliminates material shearing jams and system overloads, drastically improves batching and conveying stability for interconnected equipment, and significantly lowers line changeover labor and downtime via its highly accessible tool-less quick-dismounting design.
Tube chain conveyors move material between linked discs in a tight pipe. If powder enters in a massive, uneven surge, it can overfill the discs, causing severe packing and chain damage. Our anti-jamming rotary valve acts as a precise volumetric barrier that drops uniform, controlled amounts into the pipe, while its specialized edge geometry prevents mechanical jams at the valve throat.
Not at all. When the extractable front cover is closed and secured using our industrial fast-clamping mechanisms, it compresses rugged gaskets to form a gas-tight seal that safely maintains precise pressure containment between -0.5 and 2 bar.
It is exceptionally efficient and safe. Operators can loosen the fast-locks without tools, slide out the rotor assembly, wash or wipe the internal chamber clean of old residues, and lock it back into place in just a few minutes, avoiding recipe cross-contamination effortlessly.
