Sack Tipping Station
Created with Pixso. Modular Stainless Steel Manual Bag Dump Station Dust Free Big Bag Dumping Station

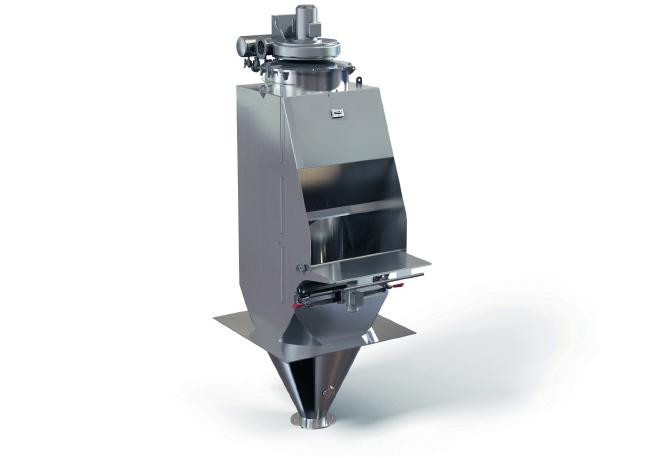

Modular Stainless Steel Manual Bag Dump Station Dust Free Big Bag Dumping Station

Brand Name: Doebritz
MOQ: 1
Price: negotiable
Delivery Time: 10 WEEKS
Payment Terms: 30/70
Detail Information
Place of Origin:
CHINA JIANGSU WUXI
Dust:
Dust-free
Filter:
Reverse Jet Filter Integrated
Hygienic Standards:
High Standard Of Hygiene
Design:
Ergonomic Design
Strainer:
Easy Dismantling Of Filter Sleeves
Metal Impurities:
Magnetic Trap For Metal Impurities
Material:
Stainless Steel AISI 304/316
Vibrating Grid:
Optional Vibrating Grid
Maintenance:
Large Back Door For Maintenance
Collector Connection:
Optional Centralized Dust Collector Connection
Packaging Details:
wooden box
Highlight:

Modular Manual Bag Dump Station

,

Stainless Steel Manual Bag Dump Station

,

Manual Big Bag Dumping Station

Product Description
Highlights
  • Dust-free
  • Reverse jet filter integrated
  • High standard of hygiene
  • Ergonomic design
  • Easy dismantling of filter sleeves
Application
Manual Bag Tipping Unit is specifically designed to manually dump any kind of powder received in bags. The unit is suitable for bag sizes up to 25 kg. The specific design combined with a reverse jet filter and powerful fan allows a completely dust-free tipping process. In addition, an optional integrated vibrating safety grid ensures free flflow and a magnetic trap ensures an end product free of metal impurities. The large back door facilitates easy dismantling of the filter sleeves.Thanks to the high sanitarydesign,manual bag tipping unit is particularly suitable forthe food, dairy, pharmaceutical and chemical industries.
Working principle

Prior to opening the bag, the operator opens the front door.The integrated reverse jet filter, the fan and the vibrating grid start automatically. The operator places the bag on the tablet and opens it using a cutting device. The ergonomic level of the tablet prevents the operator from lifting the bag. He can then easily dump the product into the unit. Once the tipping process is finished, the front door has to be closed. The filter, the fan and the vibrating grid stop automatically.

Design brief
Standard scope of supply
1. Housing of bag tipping station in stainless steel AISI 304
2. Front access door
3. Back inspection door
4. Filter sleeve
5. Filter
6. Fan (P = 0.75 kW)
Options
  •  Vibrating grid (#7 on the drawing)
  • Magnetic trap
  • Installation without filter:connection to centralized dust collector
  • Double access door for two operators
  • Housing of bag tipping station in stainless steel 316
