Sack Tipping Station
Created with Pixso. Hygienic Bulk Bag Discharge System For Food Industry 25kg Packaging

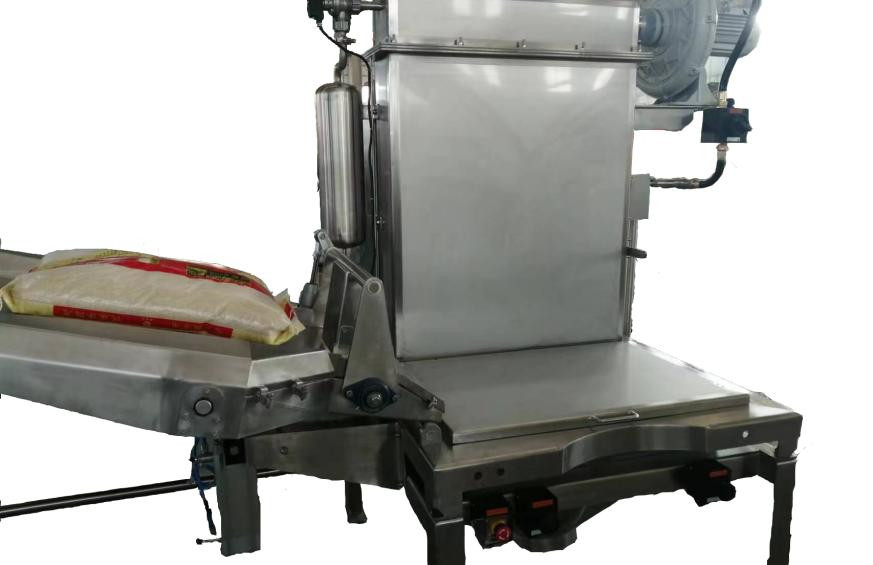

Hygienic Bulk Bag Discharge System For Food Industry 25kg Packaging
  • Name
  • Name

Hygienic Bulk Bag Discharge System For Food Industry 25kg Packaging

Brand Name: Doebritz
Model Number: DB701
MOQ: 1
Price: negotiable
Delivery Time: 10 weeks
Payment Terms: 30/70
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA JIANGSU WUXI
Modular Design:
Supports Standalone Installation And Flexible Future Expansion
Automation Upgradability:
Expandable To Fully Automated Bag Depalletizing And Waste Evacuation
Hygienic Processing:
Reduces End-product Heat Treatment Requirements While Enhancing Flavor Profiles
Eco-Friendly Recycling:
Separates Paper/plastic Waste For Sustainable Disposal
Multifunctional Operation:
Integrates Bag Opening, Liner Cutting, And Dust Containment
Dust Control:
Built-in Extraction System Minimizes Particulate Emissions
Operational Efficiency:
Processes 3 Bags/minute With 1-2 Operators
Safety Mechanisms:
Dual-start Button Prevents Contact With Automated Cutters
Compatibility:
Works With Vacuum/pressure Transport
Scalable Configuration:
Switchable Between Automatic/semi-automatic/standalone Modes
Packaging Details:
wooden box
Highlight:

Hygienic Bulk Bag Discharge System

,

Bulk Bag Discharge System 25kg

Product Description
Overview
The whole system is modular, which allows installation of any station as a stand-alone unit, with an opportunity to upgrade or expand with any other module at a later stage. The bag dumping station can be upgraded with fully automated bag de-palletizing and paper and plastic waste evacuation, so that the entire system can be fully automated to increase throughput and reduce labour costs. Among other benefits, hygienic powder dumping prior to blending or mixing reduces the need for heat treatment of the end product, improves taste features and cuts process costs.
Appliance
For opening, cutting of the plastic liner and environmentally friendly recycling of paper and plastic waste. Automated, semi-automated and stand-alone versions are available within an entirely modular scope of supply.
Highlights
Fully hygienic solution
For 25 kg / 55 lb paper bags
Automatic, semi-automatic or stand- alone design options
Modular design
Upgradeable to any confguration
Environmentally friendly recycling of paper and plastic waste
Hygienic design features
Paper is removed outside the hygiene area; only the plastic inner bag enters the hygiene area.
Paper bags do not touch surfaces that are in contact with plastic bags.
Automatic plastic bag cutting and dumping of powder means no external contamination of the powder inside the plastic bag; no hand knives; no extra dust emission.
Fulfls the requirements of the “Red Line” dairy process.
Powder dumping design
The powder dumping design is suitable for vacuum or positive-pressure powder transport and is compliant with hygiene standards and dust explosion regulations. It can be operated by 1 or 2 persons and can process up to 3 bags per minute. The design fully eliminates powder contamination, as well as handling of hand knives. The dual start button assures that hands are kept away from the automated bag cutters, thus enhancing personnel safety.
Dust emission is minimal as the system is equipped with integrated dust extraction. Recycling of separated paper and plastic waste evacuation enables environmentally friendly recycling.
