Home Products

Sack Tipping Station

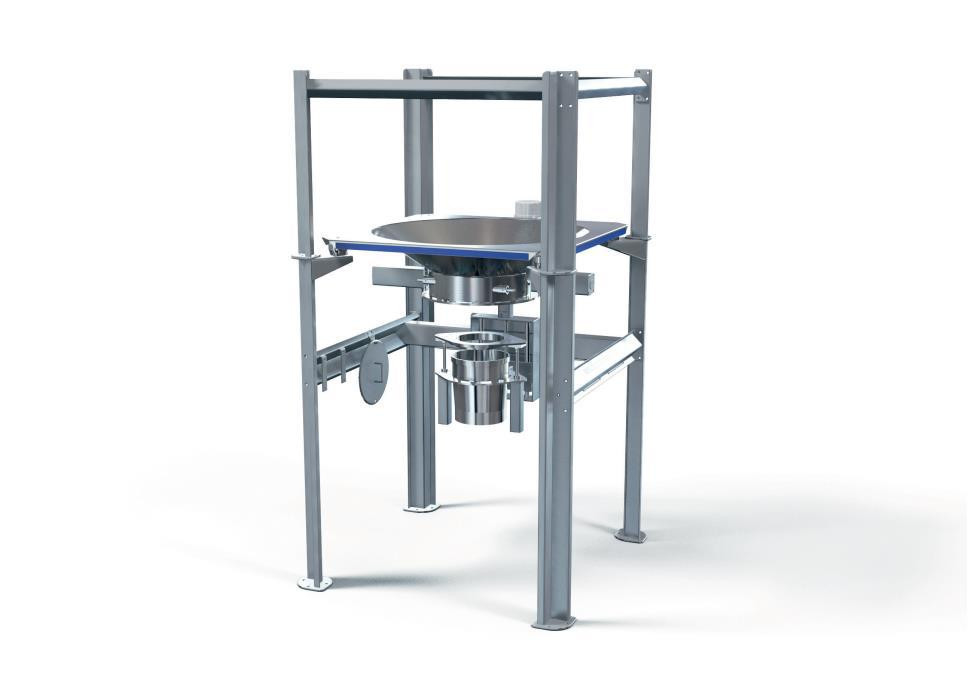

Ton level Large Bag Tipping Station SUS316 SUS304 Big Bag Discharge Station

Brand Name:	Doebritz
MOQ:	1
Price:	negotiable
Delivery Time:	10 WEEKS
Payment Terms:	30/70

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA JIANGSU WUXI

Material:

Sus304/ 316

Dust:

DUst-free

Loss:

Facilitates Product Extraction

Manipulation:

Safe And Easy Use

Hygiene Standard:

High Hygiene Standard

Efficiency:

Efficient For Big-bags

Integration:

Easy Integration

Footprint:

Small Footprint

Hygiene Improvements:

Latest Hygiene Improvements

Pneumatic Closing Device:

Optional Pneumatic Closing Device

Packaging Details:

wooden box

Highlight:

Large Bag Tipping Station

Bag Tipping Station SUS316

SUS304 Big Bag Discharge Station

Product Description

Highlights

• Dust-free

• Facilitates product extraction

• Safe and easy use

• High standard of hygiene

Application

Big-Bag Tipping Station is specifically designed to efficiently dump big-bags of granulated or powder components (free-flowing product). The station can be easily integrated into any powder handling installation. Its overall dimensions assure a very small footprint. The design integrates the latest improvements in hygiene standards by

Working principle

The big-bag is lifted and safely lowered on the station. The opening of the big-bag is connected easily and tightly at the inlet of the powder transport. The vibrating support product extraction

from the big- bag. Until the bag is empty,no operator intervention is required. The bag can be removed before it is completely emptied using the unique pneumatic closing device during emptying

(optional). With its dust-free design – thanks to the pneumatic sealing device –Big-Bag Tipping Station need not be connected to a dust collector.

Options

Open profile supporting frame, stainless steel
Stand-alone unit with hoist rail
Manual sealing device
Pneumatic bag closing device
Load cells

Standard scope of supply

1. Vibrating stainless steel support

2. Pneumatic sealing device

3. Handling spreader

4. Two-speed hoist

5. Open profile supporting frame, galvanized

Type	A	B	C	D	E	F	Base	Weight*	Weight**
VB005	3100	1106	1994	945	1715	250	1600x1600	8700	800 to 1500

* Weight on the floor

** Weight of the big-bag
