Vertical Powder Mixer
Created with Pixso. 304/316 Stainless Steel Powder Mixer Accessories Mixer Spray Nozzle

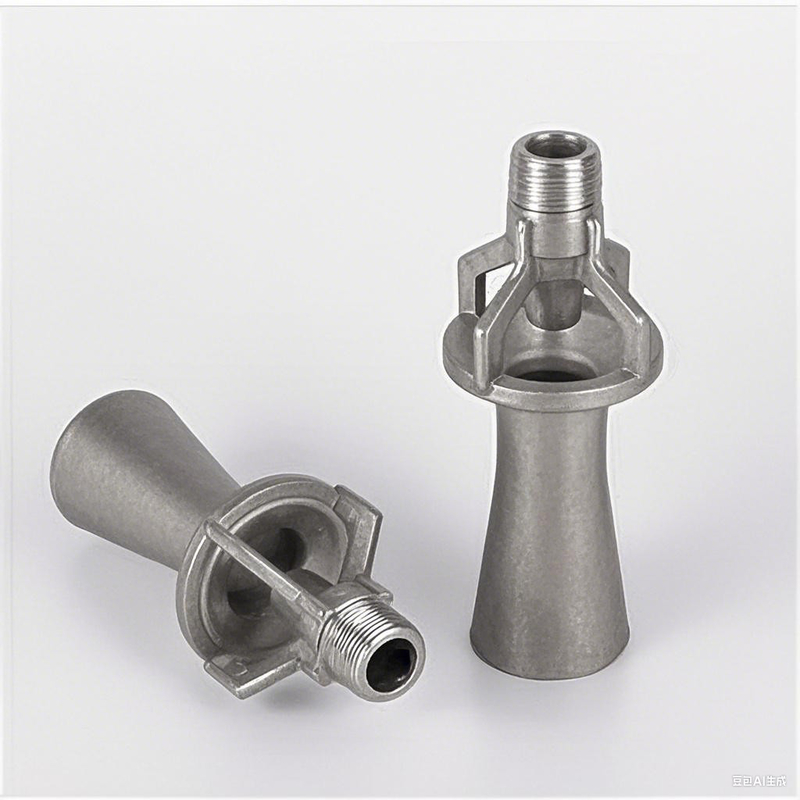

304/316 Stainless Steel Powder Mixer Accessories Mixer Spray Nozzle
  • Name

304/316 Stainless Steel Powder Mixer Accessories Mixer Spray Nozzle

Brand Name: Doebritz
MOQ: 1
Price: negotiable
Delivery Time: 14 weeks
Payment Terms: ,30/70
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA JiangSu wuxi
Adjustable Spray Patterns:
Supports Fan-shaped, Hollow Cone And Other Spray Morphologies To Cover Diverse Application Scenarios
Customization Capabilities:
Offers Parameters Customization Including Aperture Size And Thread Interfaces (e.g., 1/4" NPT/BSPT)
Atomization Performance Parameters:
Pressure Range: 2-110 Bar Flow Coefficient: Matched With Aperture Design For Optimized Spray Efficiency
Fluid Mixing Enhancement Design:
Utilizes Guide Vanes Or Swirl Structures To Improve Mixing Efficiency And Droplet Uniformity
Material & Corrosion Resistance:
Compatible Materials: 304/316 Stainless Steel, Tungsten Carbide, Etc., Suitable For Corrosive Media
Interface Compatibility:
Standard Threaded/flange Connections, With Some Models Featuring Built-in Filtration To Prevent Clogging
Packaging Details:
wooden box
Highlight:

Stainless Steel Powder Mixer Accessories

,

Powder Mixer Spray Nozzle

,

Stainless Steel Mixer Spray Nozzle

Product Description

Core Application Scenarios

  1. Material Wetting & Mixing

    • Spray liquid (e.g., wetting agents) into the mixing chamber via liquid spray pipes and storage tanks, eliminating the need to open the cover and reducing dust pollution .
    • 3D swing mixers integrate spray functions to ensure uniform material dispersion .

  2. Self-Cleaning of Equipment

    • High-pressure water spray cleans residues on mixing rollers and the upper cover, preventing material agglomeration and equipment failure .
    • Spray heads equipped with self-cleaning devices avoid clogging .

  3. Special Process Requirements

    • Flavoring Mixers: Inject fragrances or nitrogen via spray to protect material quality .
    • Food/Chemical Mixing: Corrosion-resistant materials (e.g., stainless steel, engineering plastics) adapt to acidic/alkaline environments .

Technical Parameters & Selection Guidelines

  1. Key Parameters

    • Spray Angle: Adjustable between 30°–180° for varying coverage .
    • Flow Rate & Pressure: Tailor to mixing needs; dual-fluid nozzles support 0.7–4.1 bar pressure adjustments .
    • Material: Stainless steel (corrosion resistance), engineering plastics (lightweight), or ceramics (high-temperature resistance) .

  2. Installation Considerations

    • Sealing: Add gaskets between chutes and base plates to prevent leaks .
    • Mounting: Use quick-connect couplings or clamp connectors for easy disassembly and maintenance .
